Reservoirs

Part of Hardware

Create flow or collect samples.

Introduction

Use reservoirs to create a liquid column for gravity-driven flow or to collect your finished sample with a pipette.

250 Microliter Reservoir

Safe Area

Reservoirs must have a safe area with a radius of 4.50 mm. The safe area of any two pieces of hardware must never overlap.

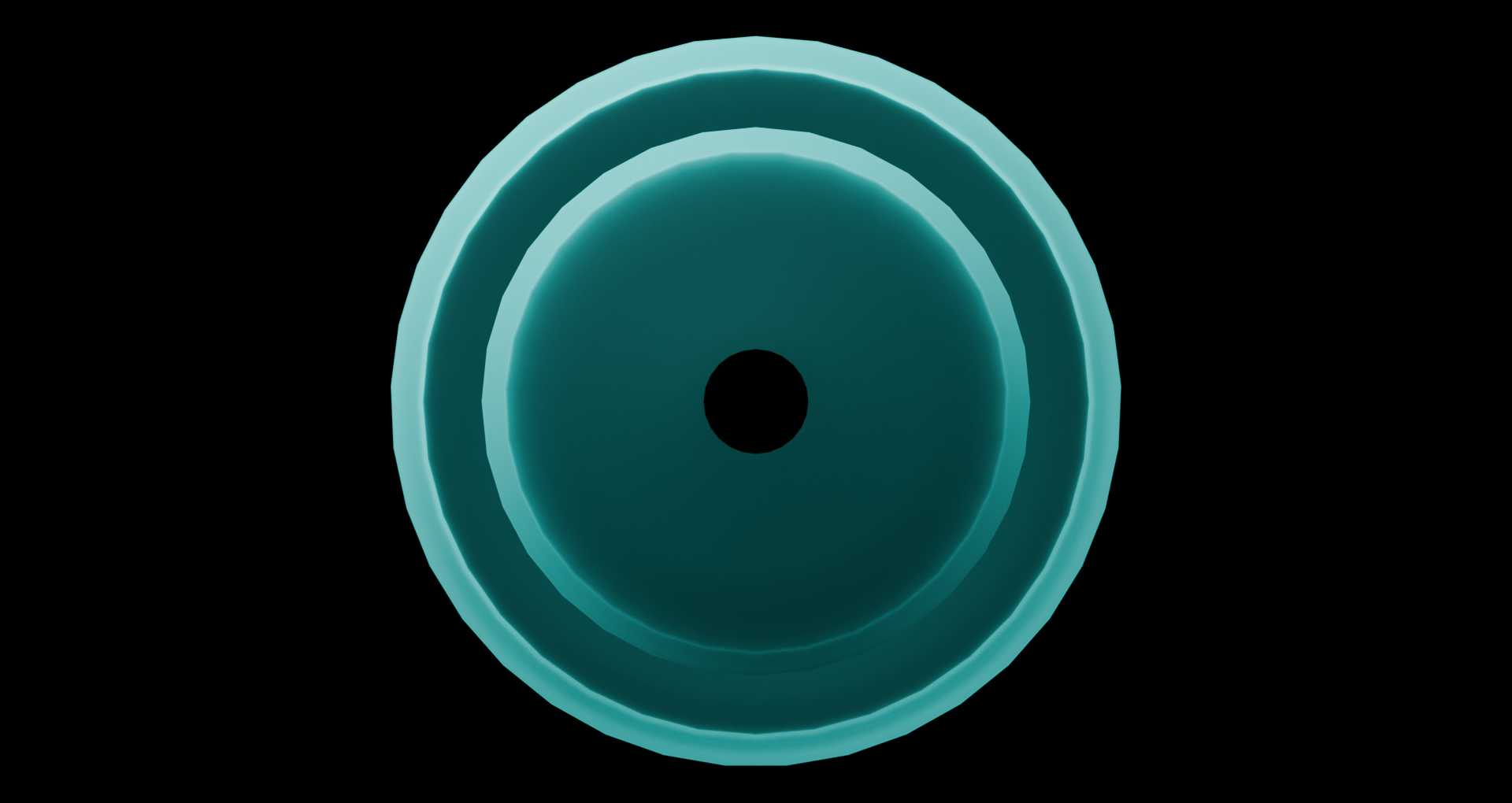

Top view of the reservoir with a circular safe area with a radius of 6.25 mm highlighted in orange. — Top view

Bar scale showing 3 mm as 16.667% of the figure's width.

Vias

A via connects to the center of every reservoir. The diameter (D) of the via’s machined portion must be between 0.4 mm and 1 mm.

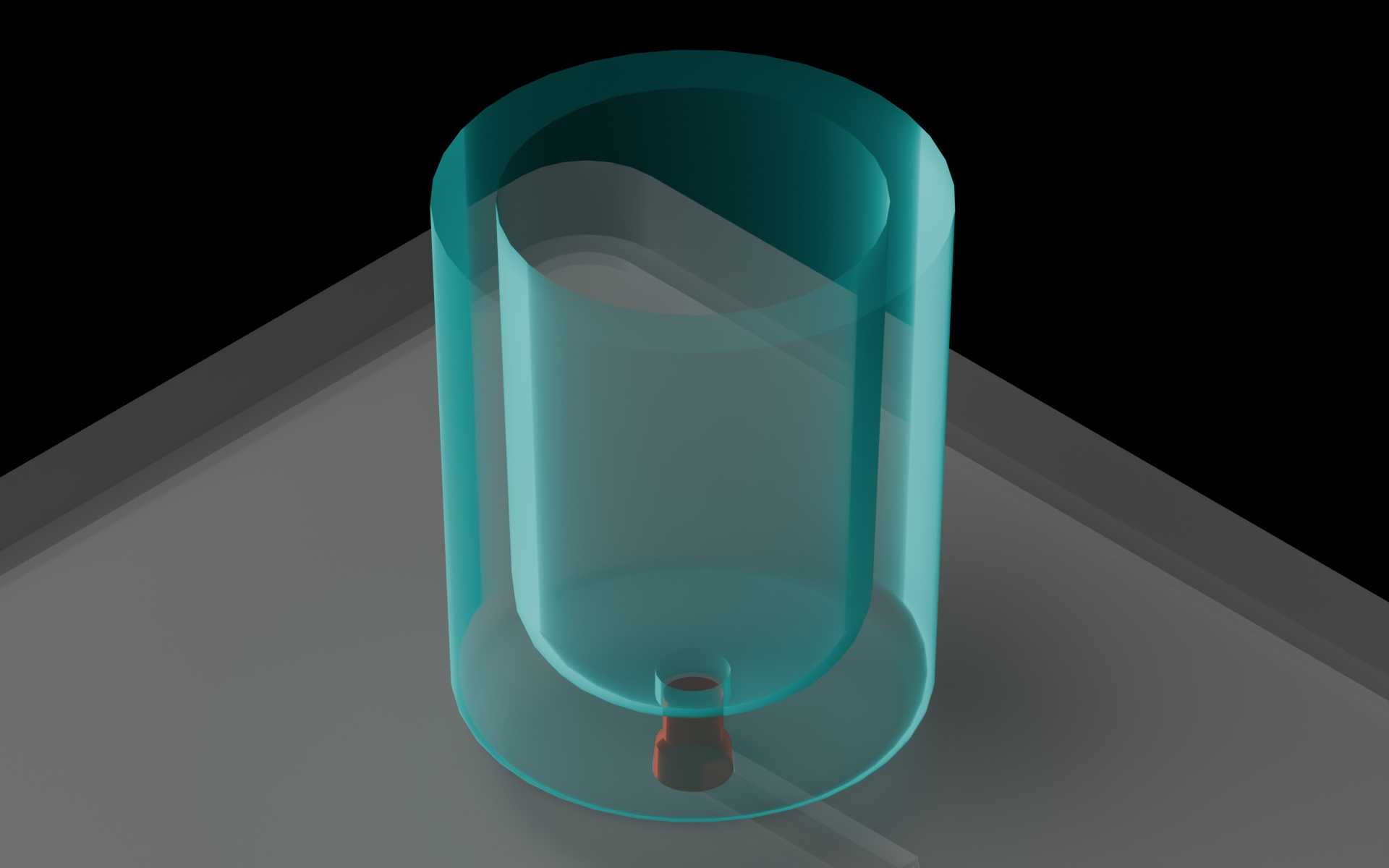

Isometric view of the reservoir on a microfluidic device. The via right below the Luer-lock port is highlighted. — Isometric view

Bar scale showing 5 mm as 21.739% of the figure's width.

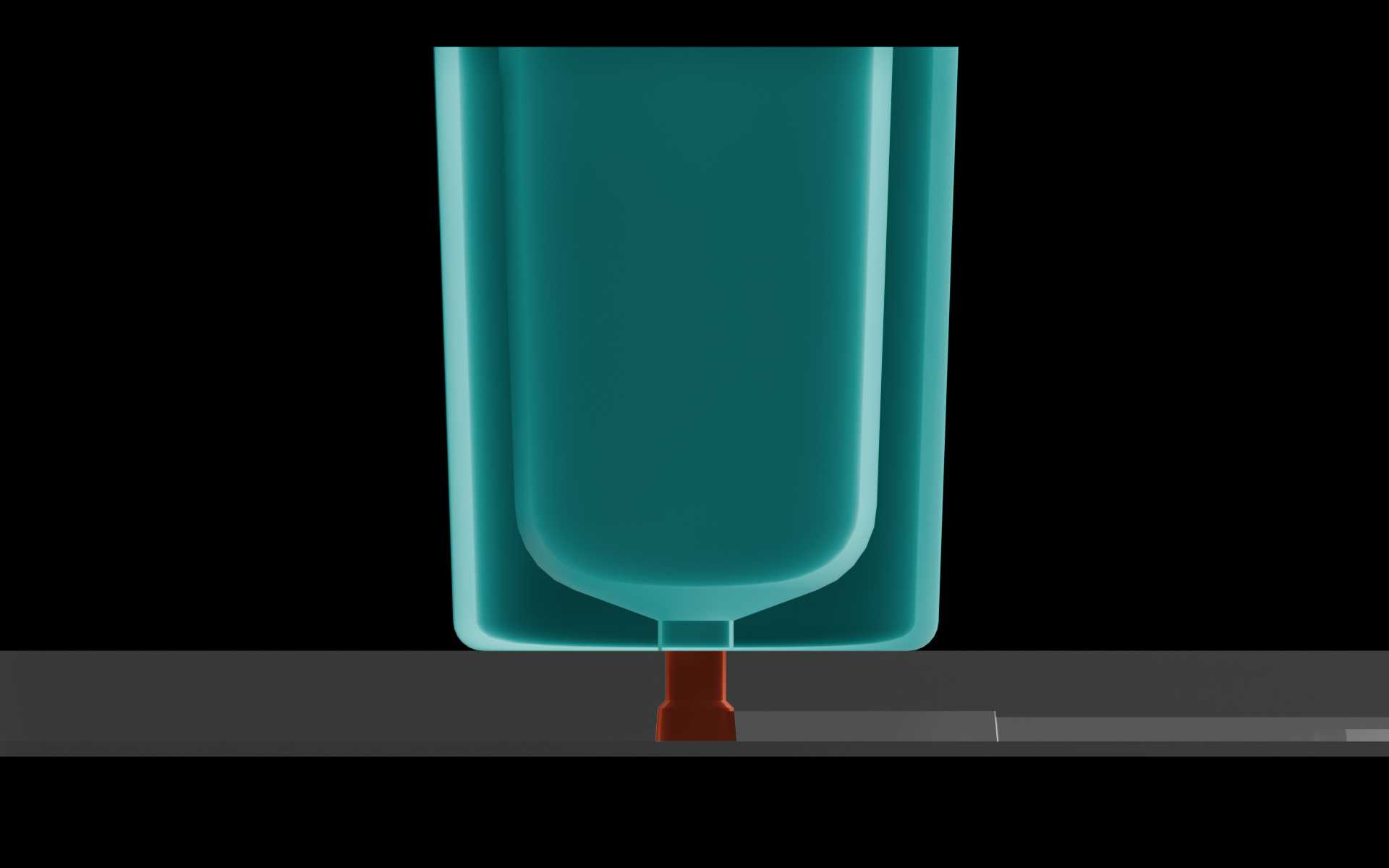

Side cross-section of the reservoir on a microfluidic device. The via right below the Luer-lock port is highlighted. — Side cross-section

Bar scale showing 5 mm as 21.739% of the figure's width.

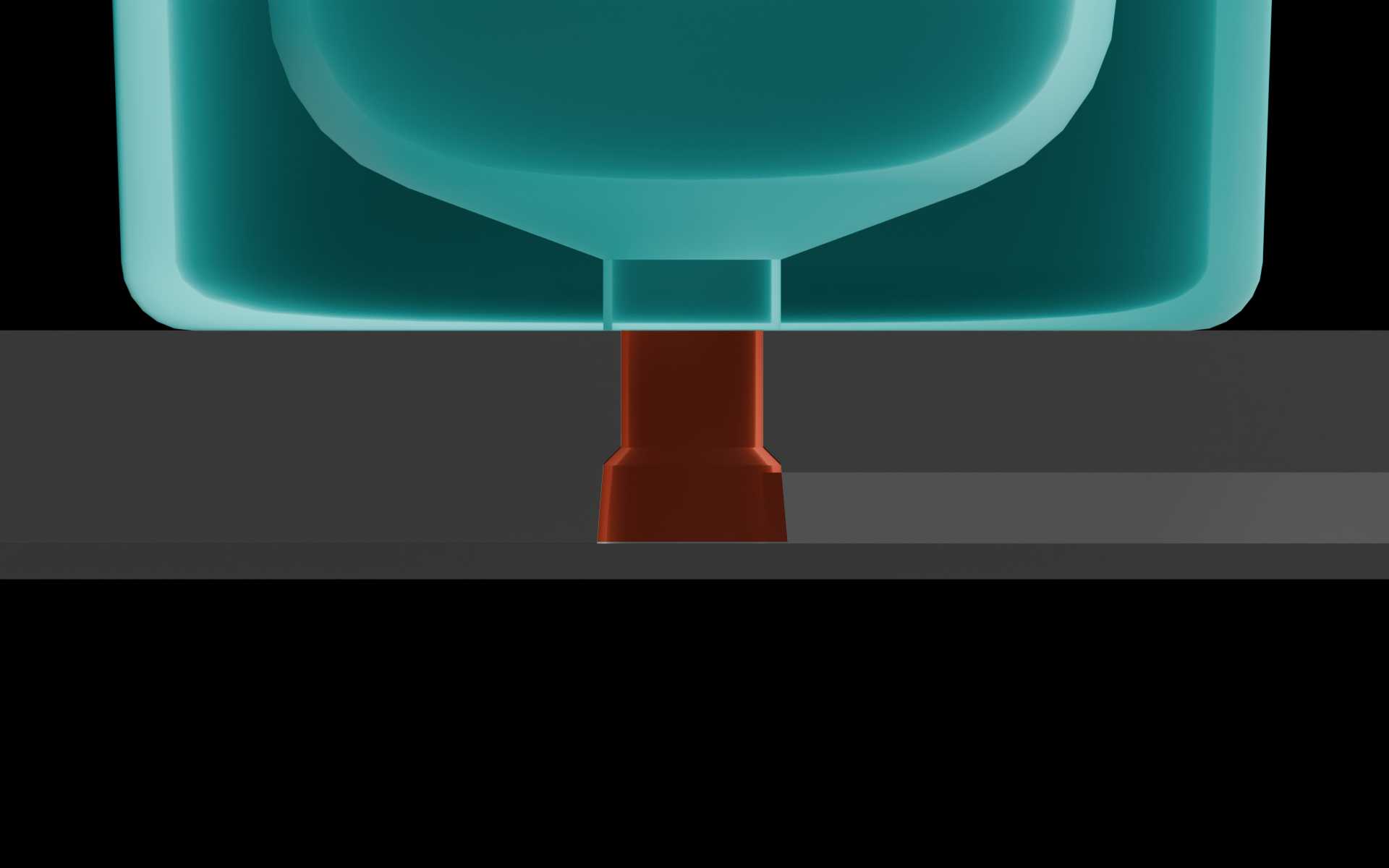

Close-up of the via below the reservoir. The narrower top portion is labeled as its diameter (D).

Bar scale showing 2 mm as 20.455% of the figure's width.

Via diameter limitations
Dimension	Minimum	Maximum
Diameter (D)	0.40 mm	1.00 mm

Reservoir to Feature Distance

The distance between the top surface of molded microfeatures and the base of a reservoir must be at least 1.00 mm.

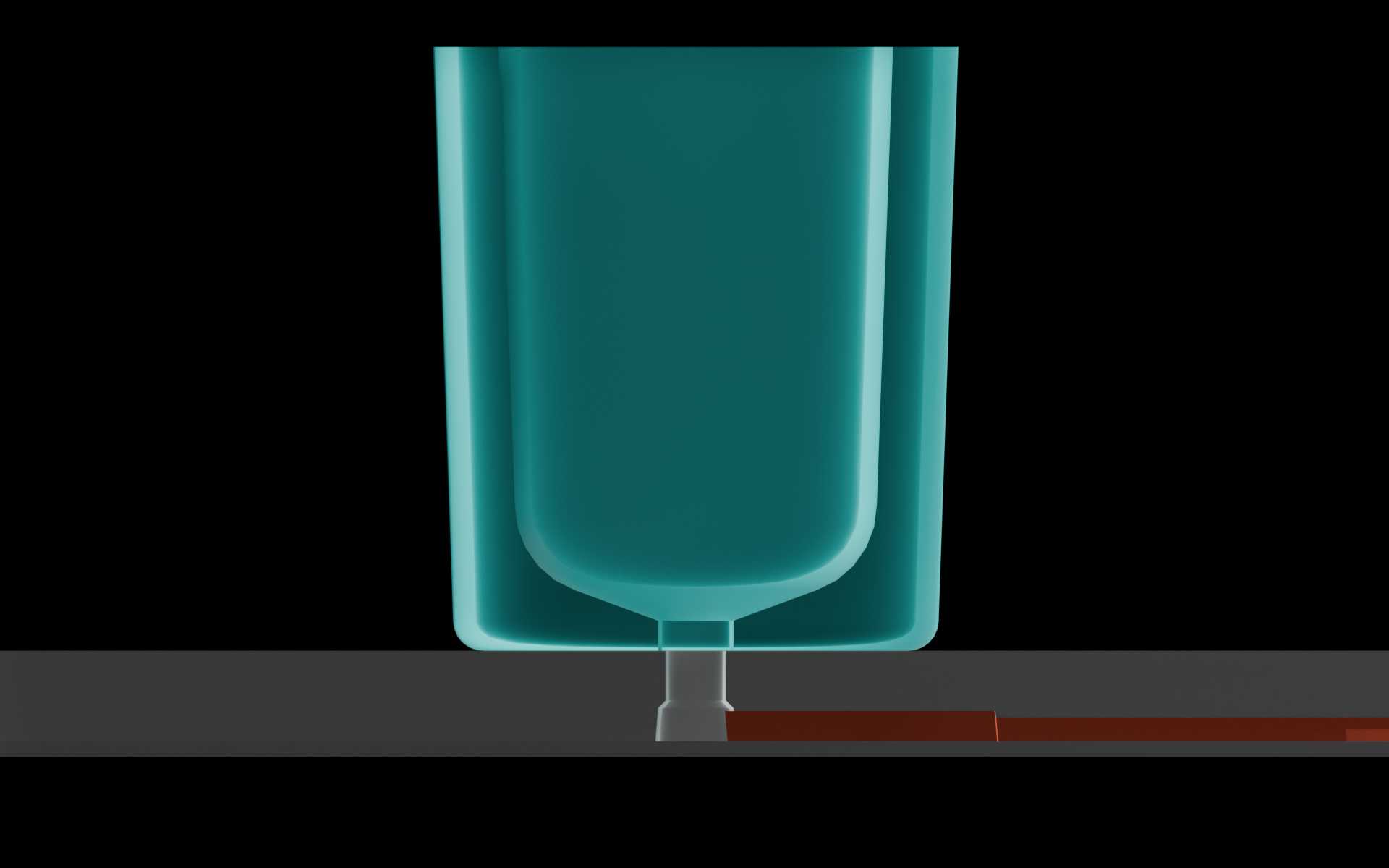

Side cross-section of the reservoir on a microfluidic device. The molded microfeatures, excluding the via, are highlighted. — Side cross-section

Bar scale showing 5 mm as 21.739% of the figure's width.

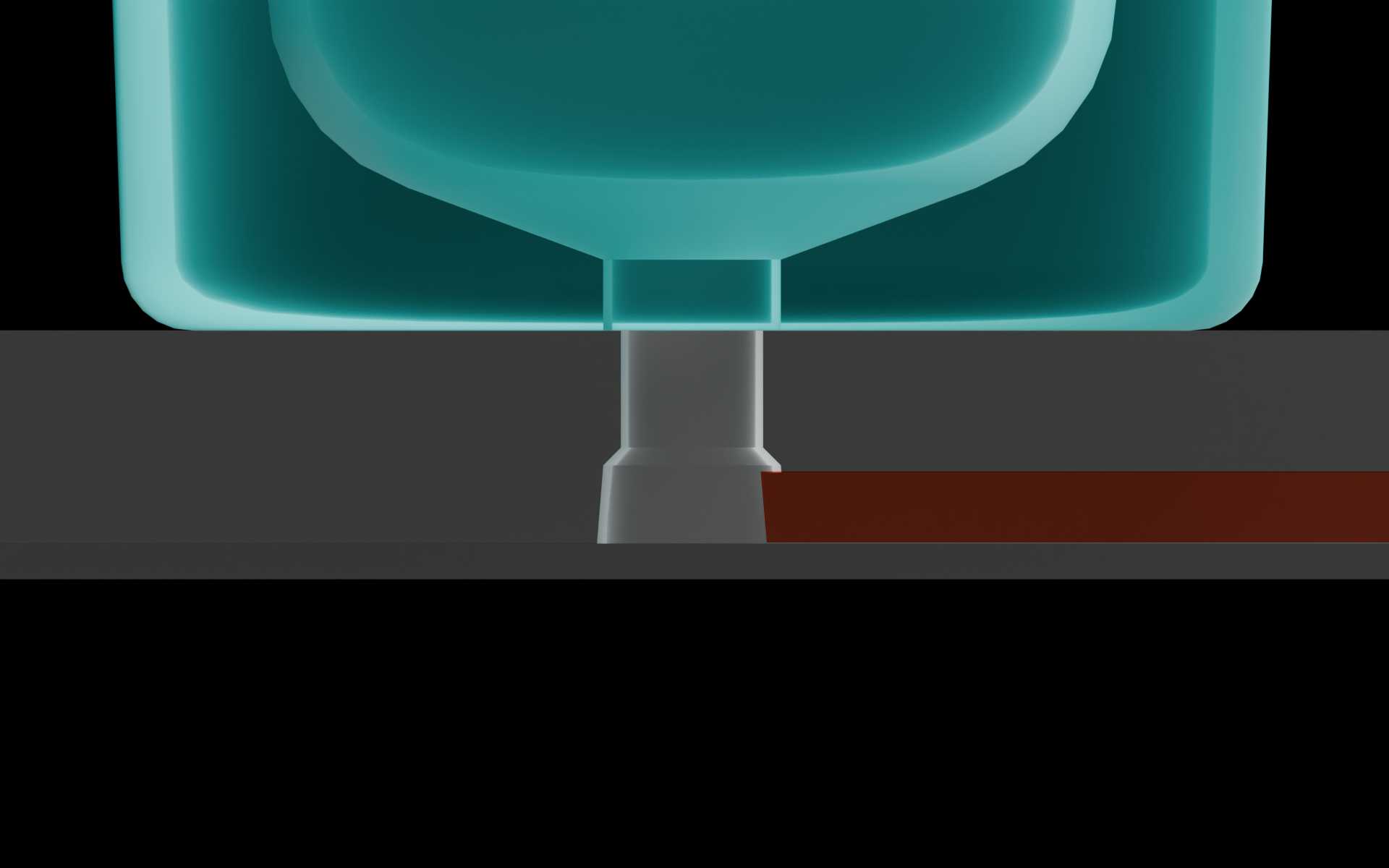

Close-up of the molded microfeatures below the reservoir. The vertical distance between the top surface of the tallest molded microfeature and the base of the reservoir is labeled as greater than or equal to 1.00 mm.

Bar scale showing 2 mm as 20.455% of the figure's width.
