Wells

Part of Fluidic Layer

Recessed molded microfeatures within the fluidic layer.

Dimensions

The diameter (D) of a well is partially limited by its height (H). The rest of a well’s dimensions should follow the requirements for molded microfeature dimensions and draft.

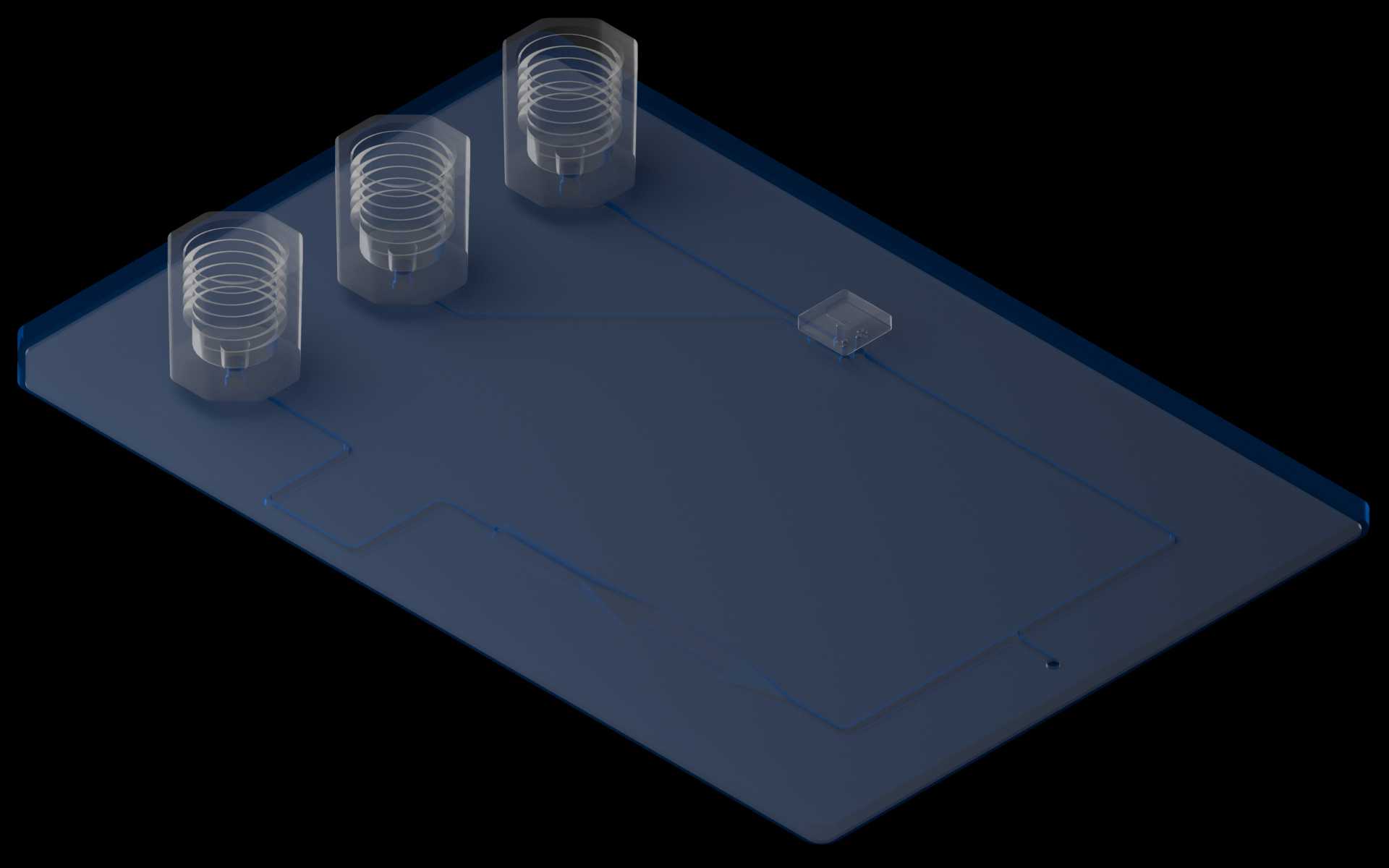

Isometric view of the reference device with all wells highlighted.
Isometric view

Bar scale showing 2 cm as 18.182% of the figure's width.

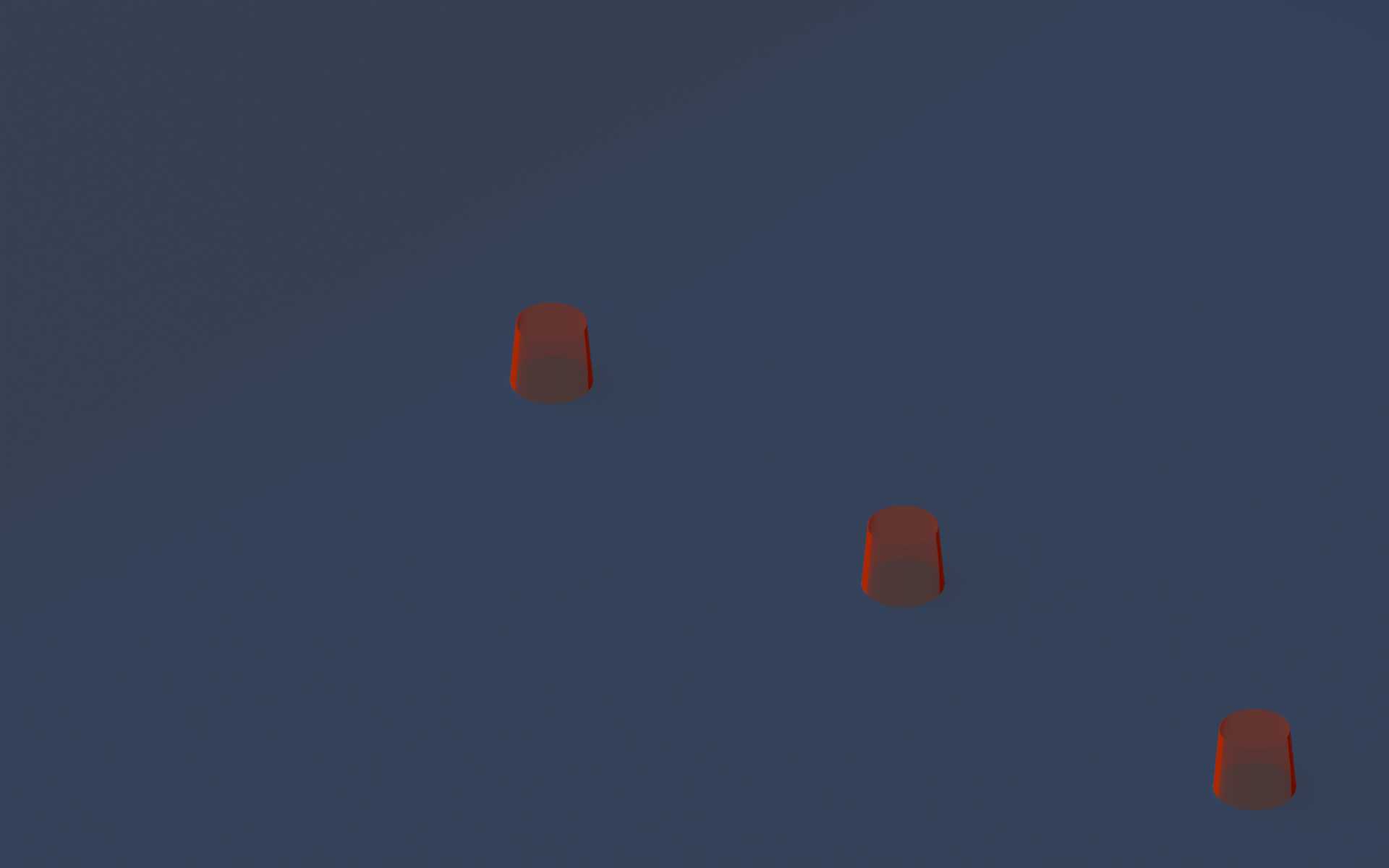

Close-up of multiple wells in a line.

Bar scale showing 250 µm as 20.455% of the figure's width.

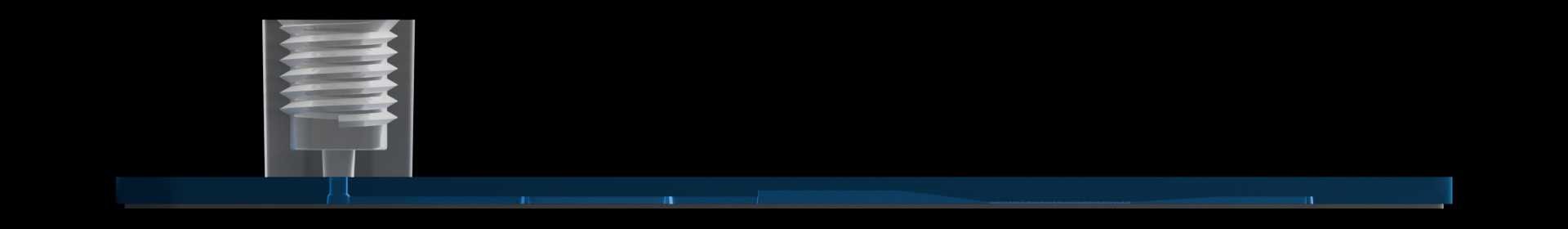

Side cross-section of the reference device with all wells highlighted.
Side cross-section

Bar scale showing 2 cm as 18.182% of the figure's width.

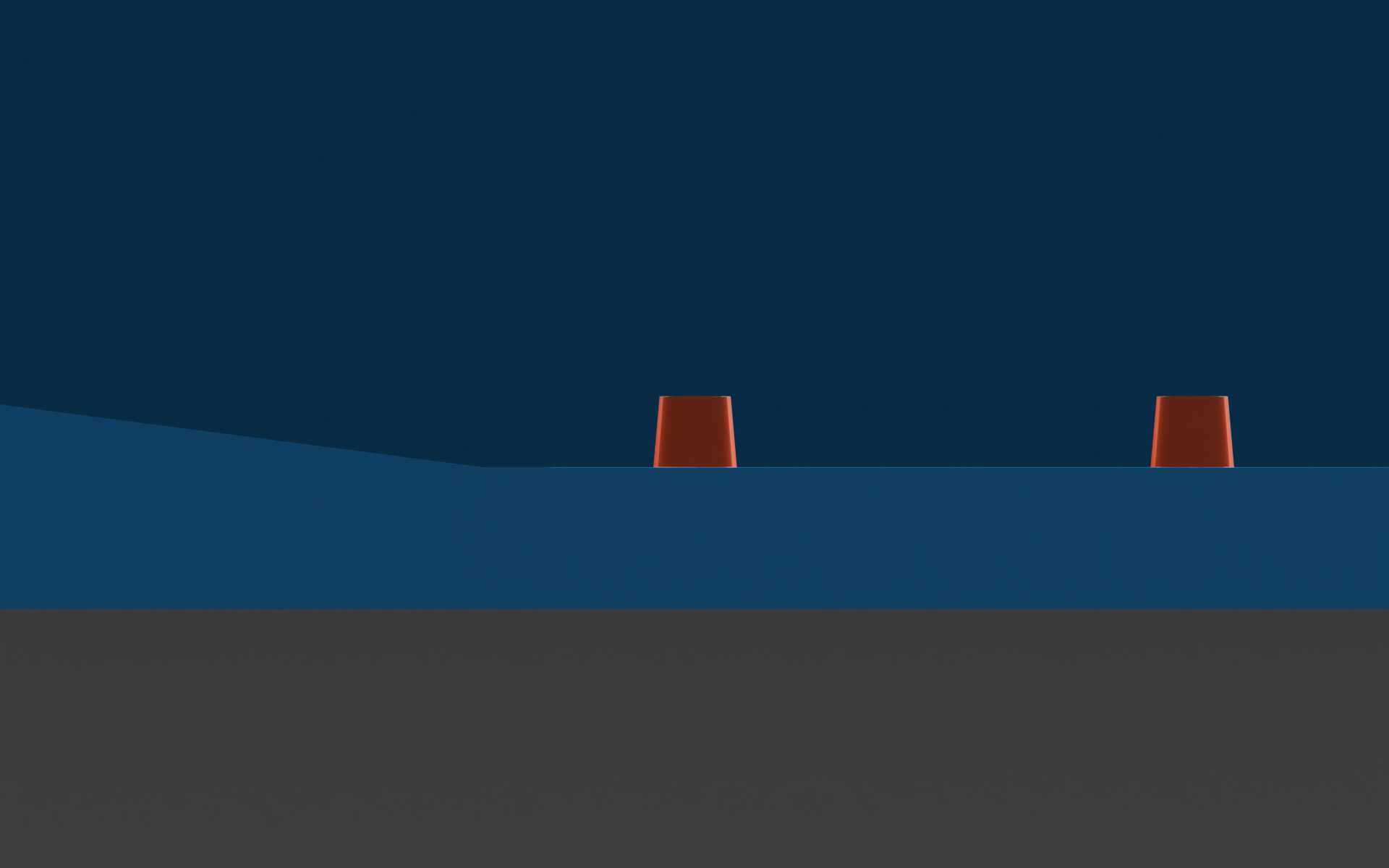

Close-up of multiple wells. The diameter of the well is labeled “D” and the height of the well is labeled “H.”

Bar scale showing 250 µm as 20.455% of the figure's width.

Fluidic layer footprint limitations
Dimension Minimum Maximum (H:D)
Diameter (D) 50 µm 2:1

Distance Between

The distance between posts must be at least 250 µm.

Side cross-section of the reference device with all wells highlighted.
Side cross-section

Bar scale showing 2 cm as 18.182% of the figure's width.

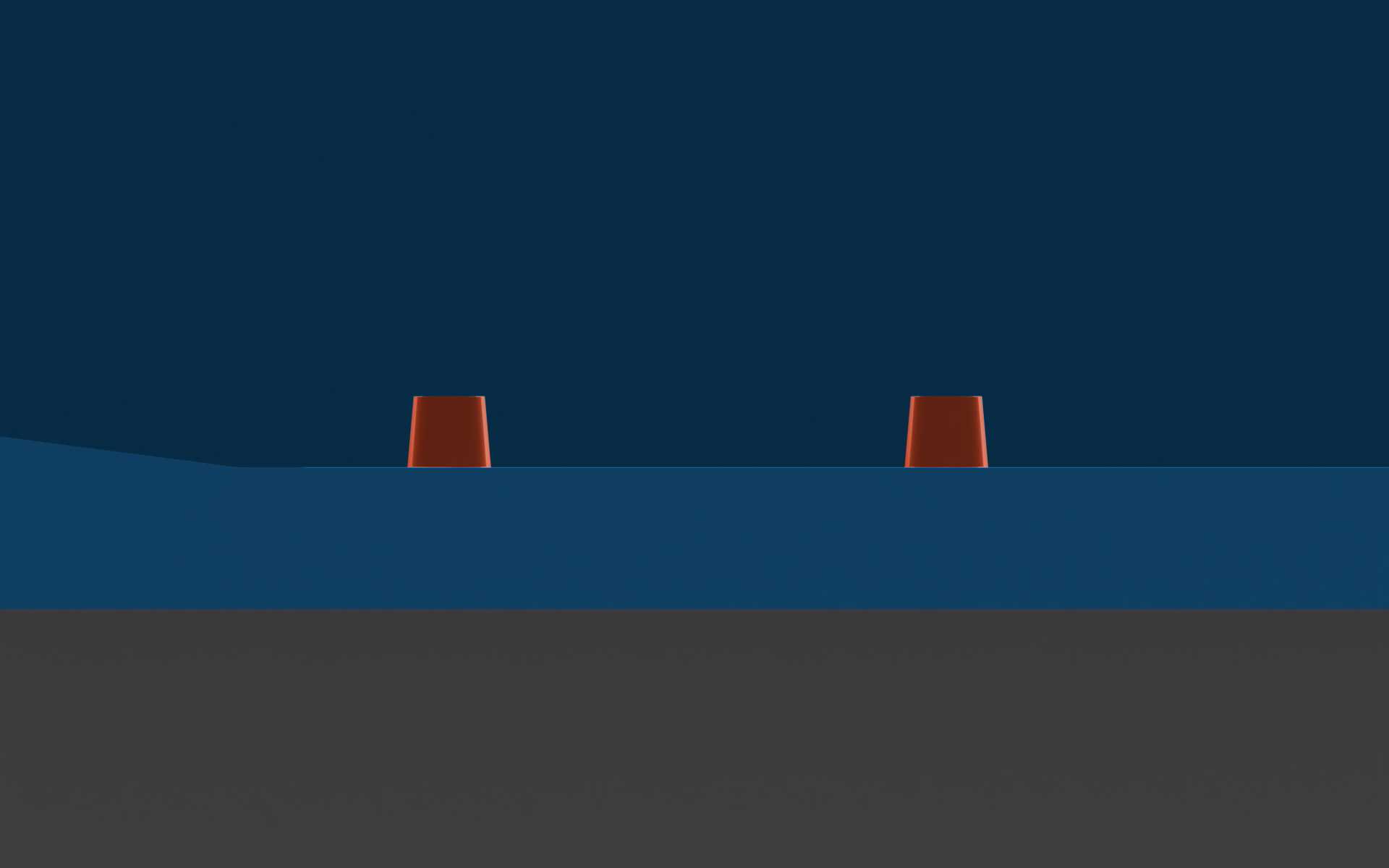

Close-up of multiple wells with at least a 250 µm gap between them.

Bar scale showing 250 µm as 20.455% of the figure's width.
