Outer Dimensions

Part of Cap

Design a cap with a custom footprint or start from a Core Format template.

Perimeter

The outer perimeter of the cap should be inwardly offset from the outer perimeter of the fluidic layer by 500 µm.

Top view of the reference device with the outer perimeter of the cap highlighted. — Top view

Bar scale showing 2 cm as 18.182% of the figure's width.

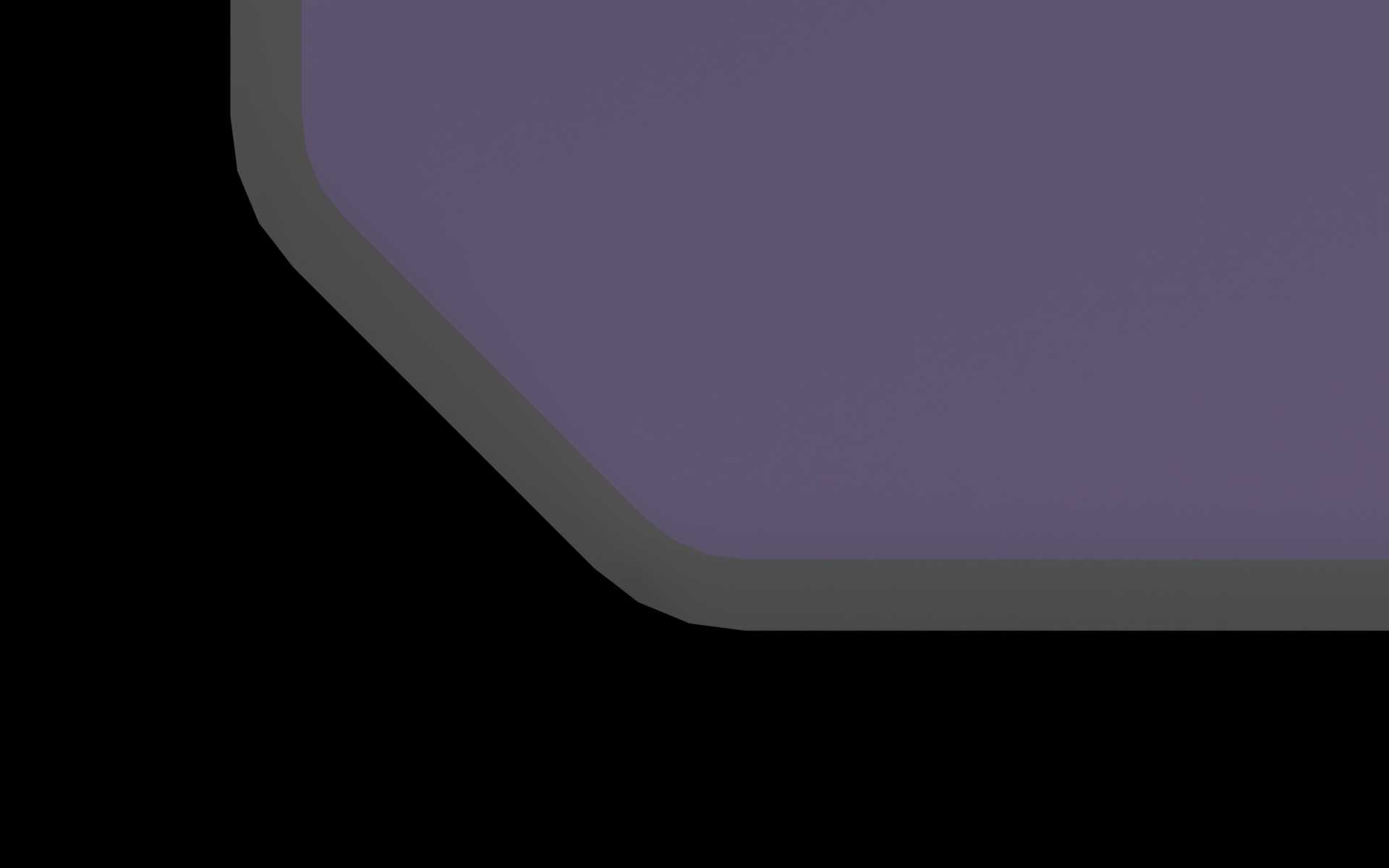

Close-up of the bottom-left corner of the reference device. The outer perimeter of the cap is offset inwards from the outer perimeter of the fluidic layer by 500 µm.

Bar scale showing 2 mm as 20.455% of the figure's width.

Corner Radii

The outer perimeter of the cap must have a corner radius of 1.00 mm.

Top view of the reference device with the outer perimeter of the cap highlighted. — Top view

Bar scale showing 2 cm as 18.182% of the figure's width.

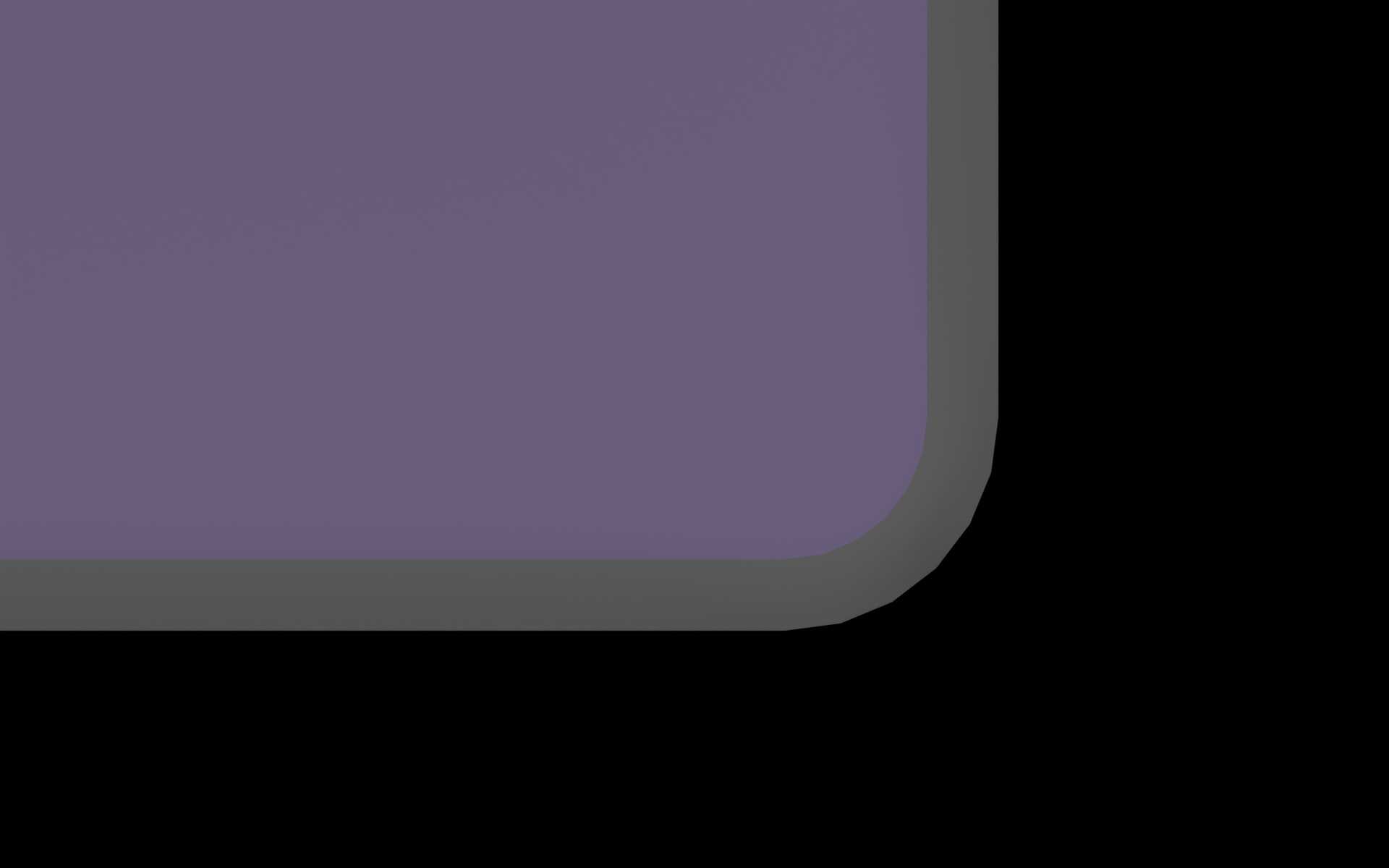

Close-up of the bottom-right corner of the reference device. The outer perimeter of the cap has a corner radius of 1.00 mm.

Bar scale showing 2 mm as 20.455% of the figure's width.
