Pipette Interface Application Guide
Pipette tip insertion depths link to Pipette tip insertion depths section
The required insertion depth (Z) into the pipette interface depends on the pipette tip diameter (D), fixturing, and the stiffness of the robotic system.

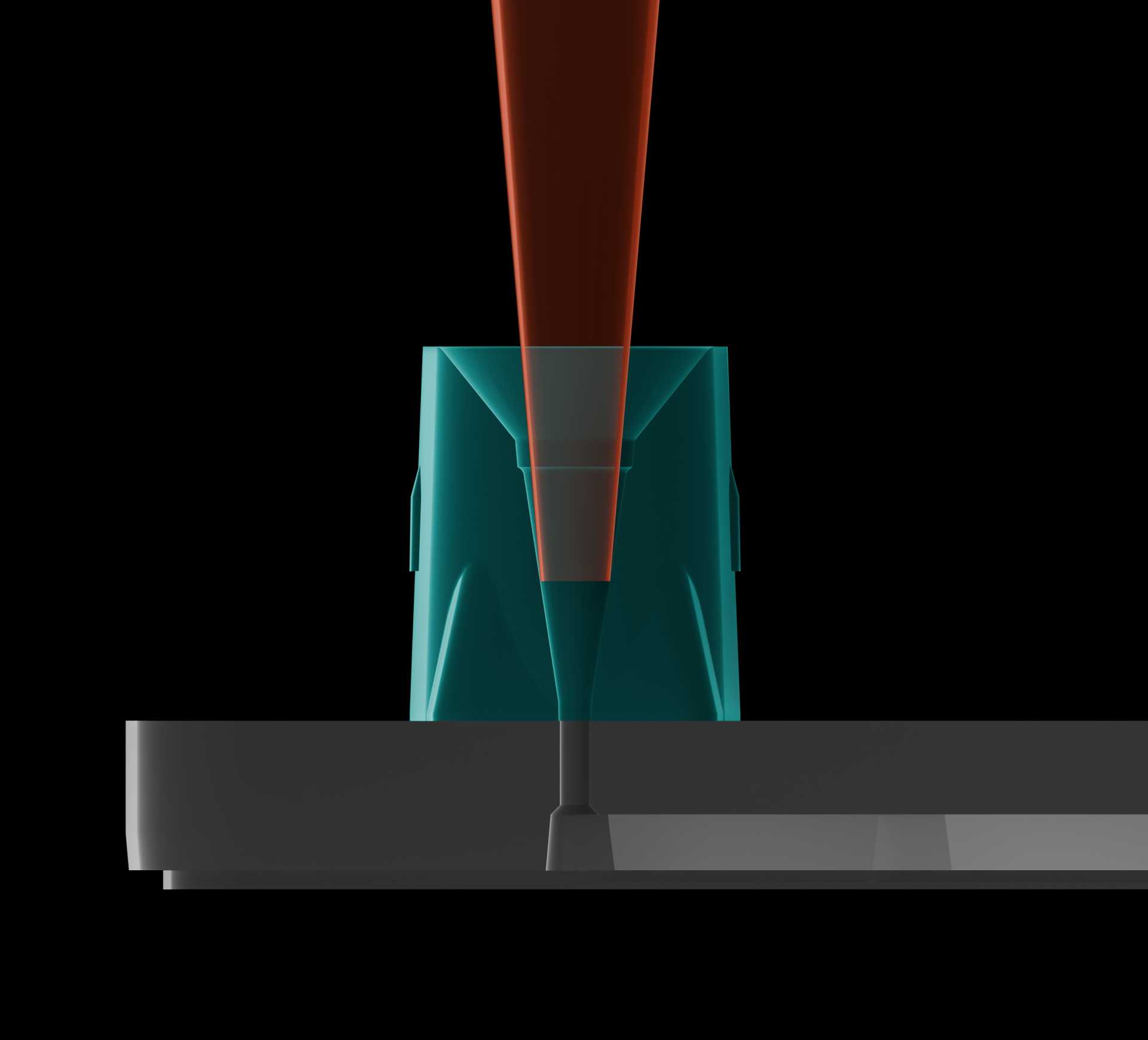

Side cross-section
Use the calculator below to determine approximate insertion depths (Z) based on the pipette tip diameter (D) or refer to the table of pipette tips from select manufacturers.
Insertion depths for select manufacturers link to Insertion depths for select manufacturers section
Pipette tip diameters (D) may vary across manufacturers and product configurations. Please consult tip manufacturer for exact specifications.
| Manufacturer | Volume (μL) | Diameter (mm) | Insertion Depth (mm) |
|---|---|---|---|
| Tecan | 10 | 0.6 | 4.4 |
| Opentrons | 50 | 0.73 | 4.2 |
| Eppendorf | 10 | 0.75 | 4.1 |
| Eppendorf | 20 | 0.8 | 4.0 |
| Tecan | 50 | 0.8 | 4.0 |
| Eppendorf | 100 | 0.9 | 3.9 |
| Eppendorf | 200 | 0.9 | 3.9 |
| Tecan | 200 | 0.9 | 3.9 |
| Tecan | 350 | 0.9 | 3.9 |
| Opentrons | 200 | 0.96 | 3.8 |
| Eppendorf | 300 | 1.0 | 3.7 |
| Tecan | 1000 | 1.2 | 3.4 |
| Eppendorf | 1000 | 1.3 | 3.2 |
| Opentrons | 1000 | 1.3 | 3.2 |
